Products overview

Ming Yang Smart Energy delivers integrated onshore and offshore wind solutions designed to make clean energy more efficient, accessible, and affordable. With proven hybrid-drive technology, modular design principles, and a commitment to localisation, our platforms help partners across Europe accelerate progress towards net zero.

From fixed-bottom giants built for the North Sea to high-efficiency turbines for inland projects, our portfolio combines reliability with innovation, reducing the cost of clean energy generation while maximising yield and availability.

Offshore & Floating

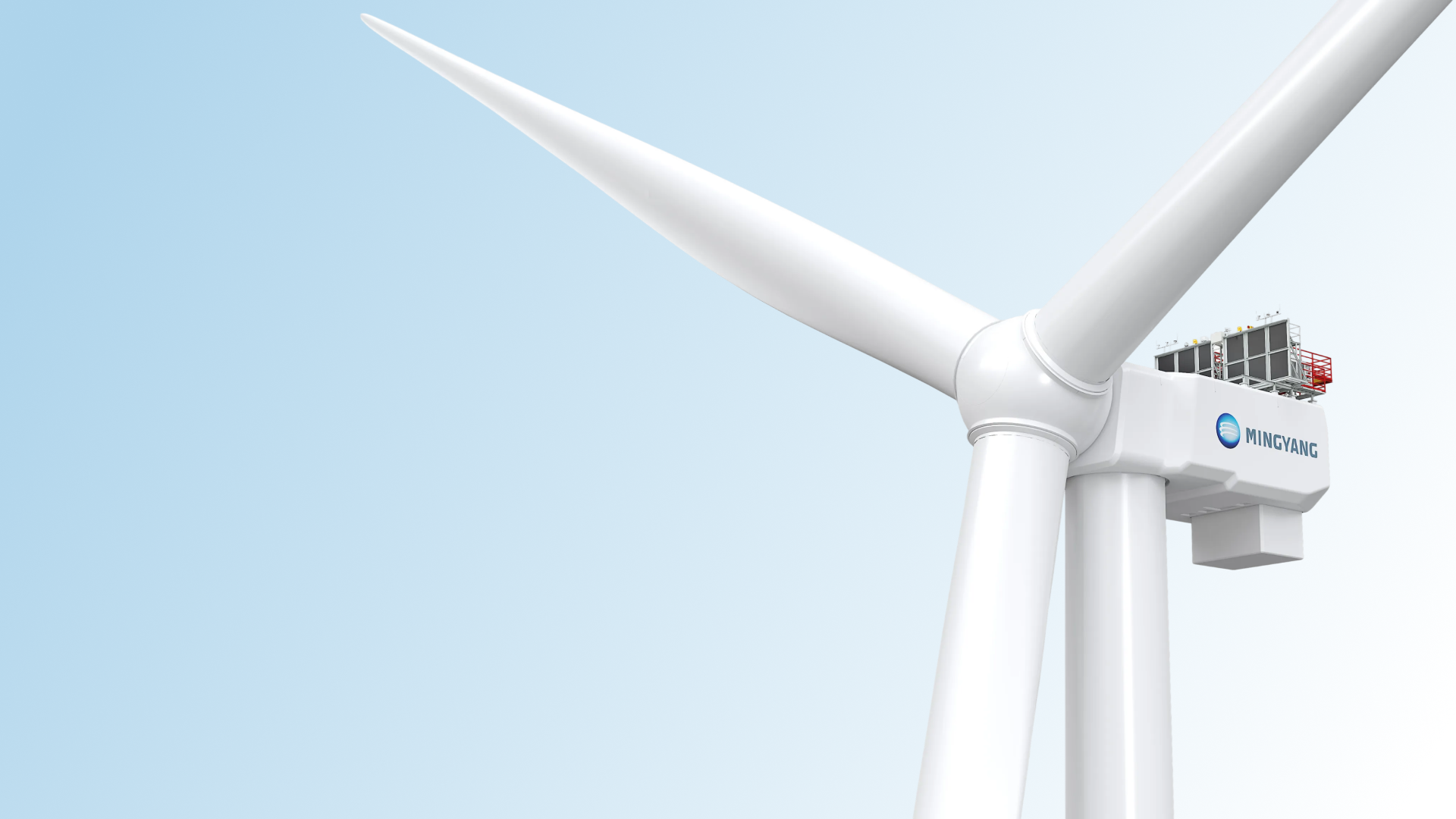

Turbine MySE 18.5-260
Operating Data
Rated power18500 kW
Rated Wind speed11.5 m/s
Cut-in Wind speed3 m/s
Cut-out Wind speed30 m/s
Survival Wind Speed50 (10 mins) / 70 (3 s) m/s
Operational Temperature-10℃ ~ +40℃
Survival Temperature-20℃ ~ +50℃
Design Life35 years
Rotor
Rotor Diameter260 m
Swept Area53093 m²
Pitch SystemElectric
Blade
Length127.5 m
MaterialsGlass and carbon fiber epoxy composite
Generator
TypePMSG
Rated power19500 kW
Rated Voltage950 V
Converter
Rated output voltage950 V
Frequency50/60 Hz
CoolingAir-Water Cooling
Tower
Type / Height155 m
Turbine MySE 18-292
Operating Data
Rated power18000 kW
Rated Wind speed11.5 m/s
Cut-in Wind speed3 m/s
Cut-out Wind speed25 m/s
Survival Wind Speed45(10mins) / 63(3s) m/s
Operational Temperature-10°C ~ +40°C
Survival Temperature-20°C ~ +50°C
Design Life30 a
Rotor
Rotor Diameter292 m
Swept Area66966.19 m²
Pitch SystemElectric
Blade
Length143 m
MaterialsGlass/Carbon fiber epoxy composite
Generator
TypePMSG
Rated power19500 kW
Rated Voltage950 V
Converter
Rated output voltage19000 V
Frequency50/60 Hz
CoolingAir-Water Cooling
Tower
Type/Height133.5 m
Turbine MySE 8.5-230
Operating Data
Rated power8500 kW
Rated Wind speed11.3 m/s
Cut-in Wind speed3 m/s
Cut-out Wind speed25 m/s
Survival Wind Speed57(10mins) / 79.8(3s) m/s
Operational Temperature-10°C ~ +40°C
Survival Temperature-20°C ~ +50°C
Design Life30 a
Rotor
Rotor Diameter230 m
Swept Area41548 m²
Pitch SystemElectric
Blade
Length111.5 m
MaterialsGlass/Carbon fiber epoxy composite
Generator
TypePMSG
Rated power9000 kW
Rated Voltage1380 V
Converter
Rated output voltage1140 V
Frequency50/60 Hz
CoolingWater cooling
Tower
Type/Height155 m
Turbine MySE OceanX
Operating Data
Rated power16600 kW
Rated Wind speed10.5 m/s
Cut-in Wind speed3 m/s
Cut-out Wind speed25 m/s
Survival Wind Speed57 m/s
Operational Temperature-10°C ~ +40°C
Survival Temperature-20°C ~ +50°C
Design Life25 a
Rotor
Rotor Diameter182.54 m
Swept Area52313.74 m²
Pitch SystemElectric
Blade
Length89 m
MaterialsGlass/Carbon fiber epoxy composite
Generator
TypePMSG
Rated power9000 kW
Rated Voltage1380 V
Converter
Rated output voltage1140 V
Frequency50/60 Hz
CoolingAir-Water Cooling
Tower
Type/Height114 m

Onshore

Turbine MySE 7.5-182
Operating Data
Rated power7500 kW
Rated Wind speed13.7 m/s
Cut-in Wind speed3 m/s
Cut-out Wind speed25 m/s
Survival Wind Speed59.5 m/s
Operational Temperature-30 — 40 ℃
Survival Temperature-40 — 50 ℃
Design Life25 a
Rotor
Rotor Diameter182 m
Swept Area26016 m²
Pitch SystemElectric
Blade
Length89 m
MaterialsGlass Fiber Reinforced Plastic
Generator
TypeDFIG
Rated power7800 kW
Rated Voltage1140 V
Converter
Rated output voltage1140 V
Frequency50/60 Hz
CoolingAir
Tower
Type/HeightSteel: 110-130 / Hybrid: 159/170 m
Turbine MySE 6.25-182
Operating Data
Rated power6250 kW
Rated Wind speed10.5 m/s
Cut-in Wind speed3 m/s
Cut-out Wind speed25 m/s
Survival Wind Speed59.5 m/s
Operational Temperature-30 — 40 ℃
Survival Temperature-40 — 50 ℃
Design Life25 a
Rotor
Rotor Diameter182 m
Swept Area26016 m²
Pitch SystemElectric
Blade
Length89 m
MaterialsGlass Fiber Reinforced Plastic
Generator
TypeDFIG
Rated power6600 kW
Rated Voltage1140 V
Converter
Rated output voltage1140 V
Frequency50/60 Hz
CoolingAir
Tower
Type/HeightSteel: 129 / Hybrid: 159/170 m
Turbine MySE 6.25-172
Operating Data
Rated power6250 kW
Rated Wind speed13.0 m/s
Cut-in Wind speed2.5 m/s
Cut-out Wind speed25.0 m/s
Survival Wind Speed59.5 m/s
Operational Temperature-30 — 40 ℃
Survival Temperature-40 — 50 ℃
Design Life25 a
Rotor
Rotor Diameter172 m
Swept Area23235 m²
Pitch SystemElectric
Blade
Length84.5 m
MaterialsGlass Fiber Reinforced Plastic
Generator
TypeDoubly Fed Induction Generator
Rated power6600 kW
Rated Voltage1140 V
Converter
Rated output voltage1140 V
Frequency50/60 Hz
CoolingAir
Tower
Type/HeightSteel: 129 / Hybrid: 159/170 m
Turbine MySE 5.0-166
Operating Data
Rated power5000 kW
Rated Wind speed10.1 m/s
Cut-in Wind speed2.5 m/s
Cut-out Wind speed25.0 m/s
Survival Wind Speed59.5 m/s
Operational Temperature-30 — 40 ℃
Survival Temperature-40 — 50 ℃
Design Life25 a
Rotor
Rotor Diameter166 m
Swept Area21642 m²
Pitch SystemElectric
Blade
Length81 m
MaterialsGlass Fiber Reinforced Plastic
Generator
TypePermanent Magnet Synchronous Generator
Rated power5300 kW
Rated Voltage690 V
Converter
Rated output voltage690 V
Frequency50/60 Hz
CoolingWater and forced-air
Tower
Type/HeightSteel: 100-120 m
